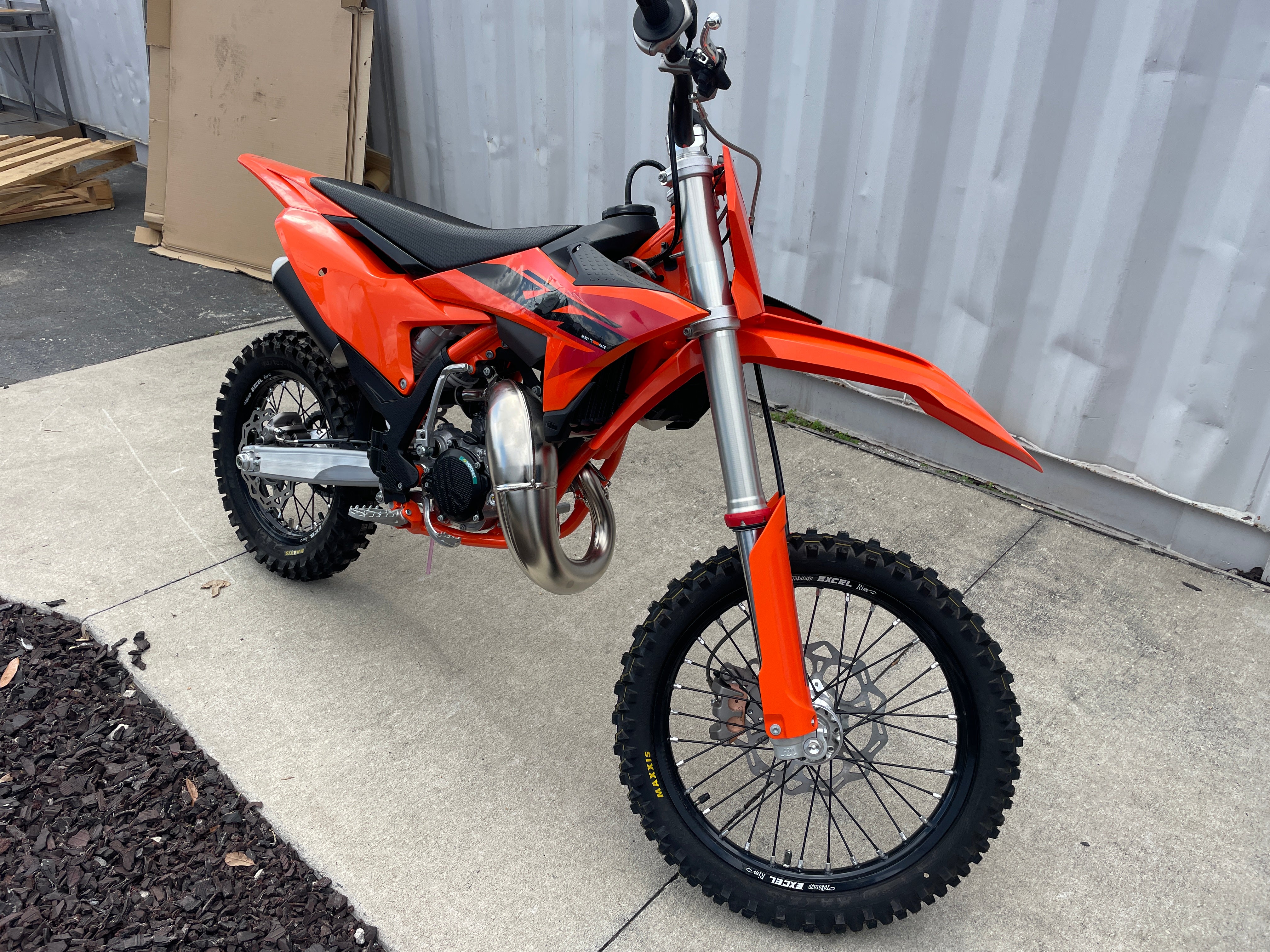

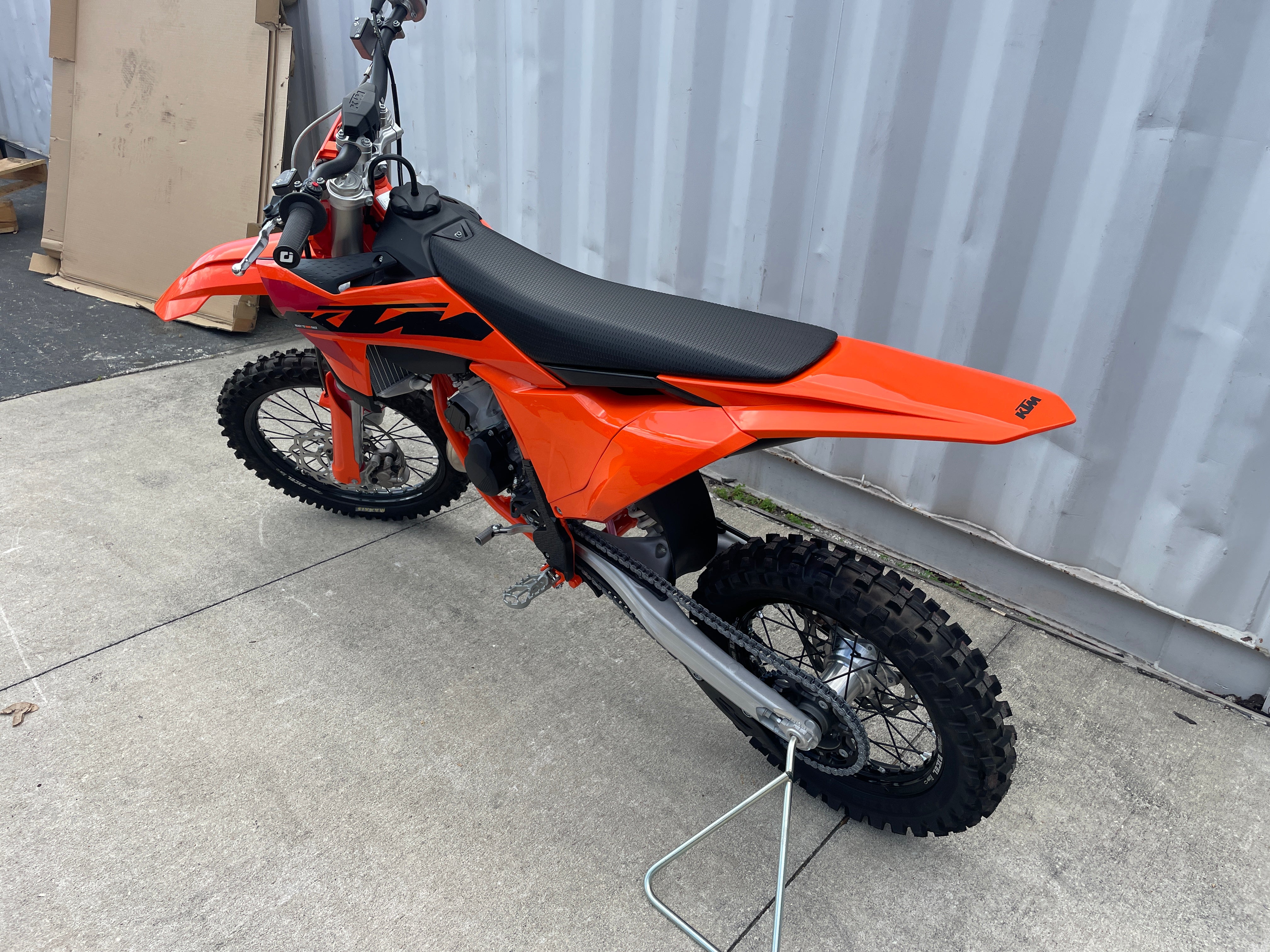

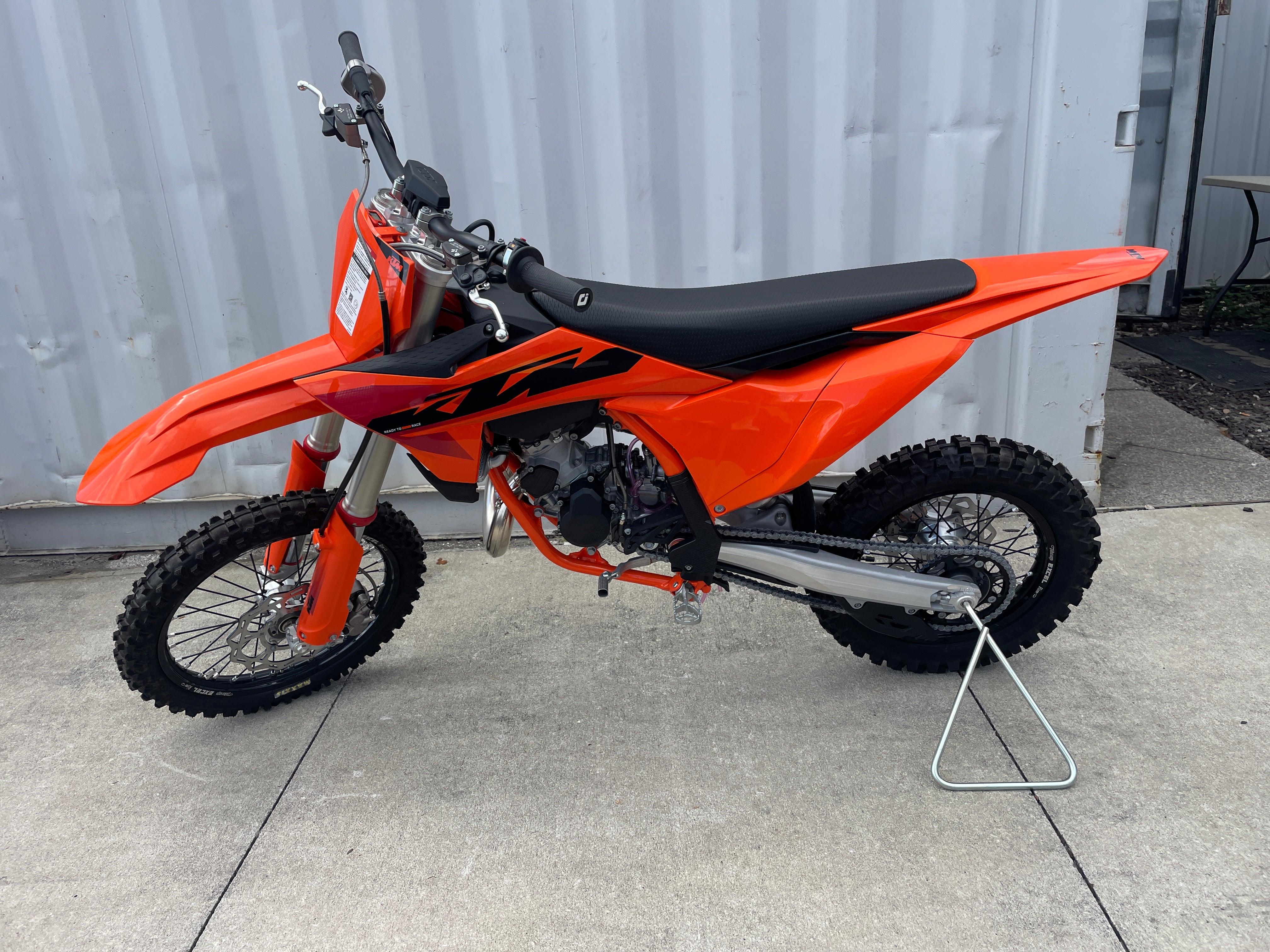

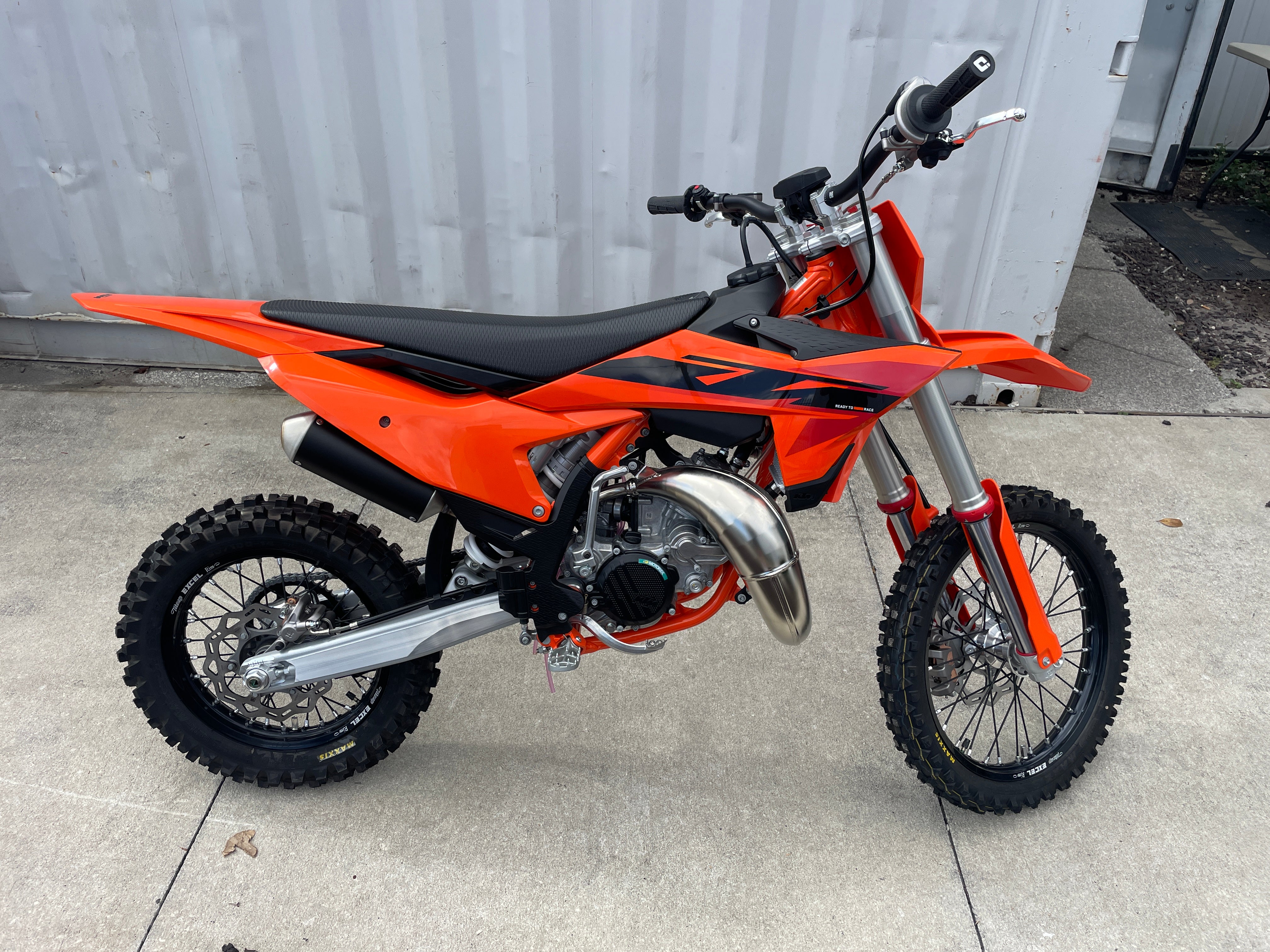

The 2025 KTM 85 SX 17/14 is a high-performance motocross bike designed for young riders looking to step up their game. With race-ready components, a lightweight chassis, and powerful two-stroke performance, it delivers an ideal blend of agility and speed.
Engine & Performance
-
Type: 1-cylinder, 2-stroke
-
Displacement: 84.9 cm³
-
Bore x Stroke: 47 mm x 48.95 mm
-
Starter: Kickstart
-
Transmission: 6-speed
-
Clutch: Wet, multi-disc, Formula hydraulics
-
Carburetor: Keihin PWK 28
Chassis & Suspension
-
Frame: Central-tube frame with a double-cradle design
-
Front Suspension: WP XACT 43 mm USD fork, 278 mm travel
-
Rear Suspension: WP XACT PDS mono shock, 289 mm travel
-
Subframe: Aluminum-reinforced polyamide
Dimensions & Ergonomics
-
Wheelbase: 1,282 mm
-
Ground Clearance: 308 mm
-
Seat Height: 845 mm
-
Fuel Tank Capacity: 5.4 liters
-
Weight: 68 kg (without fuel)
Braking & Wheels
-
Front Brake: 240 mm disc
-

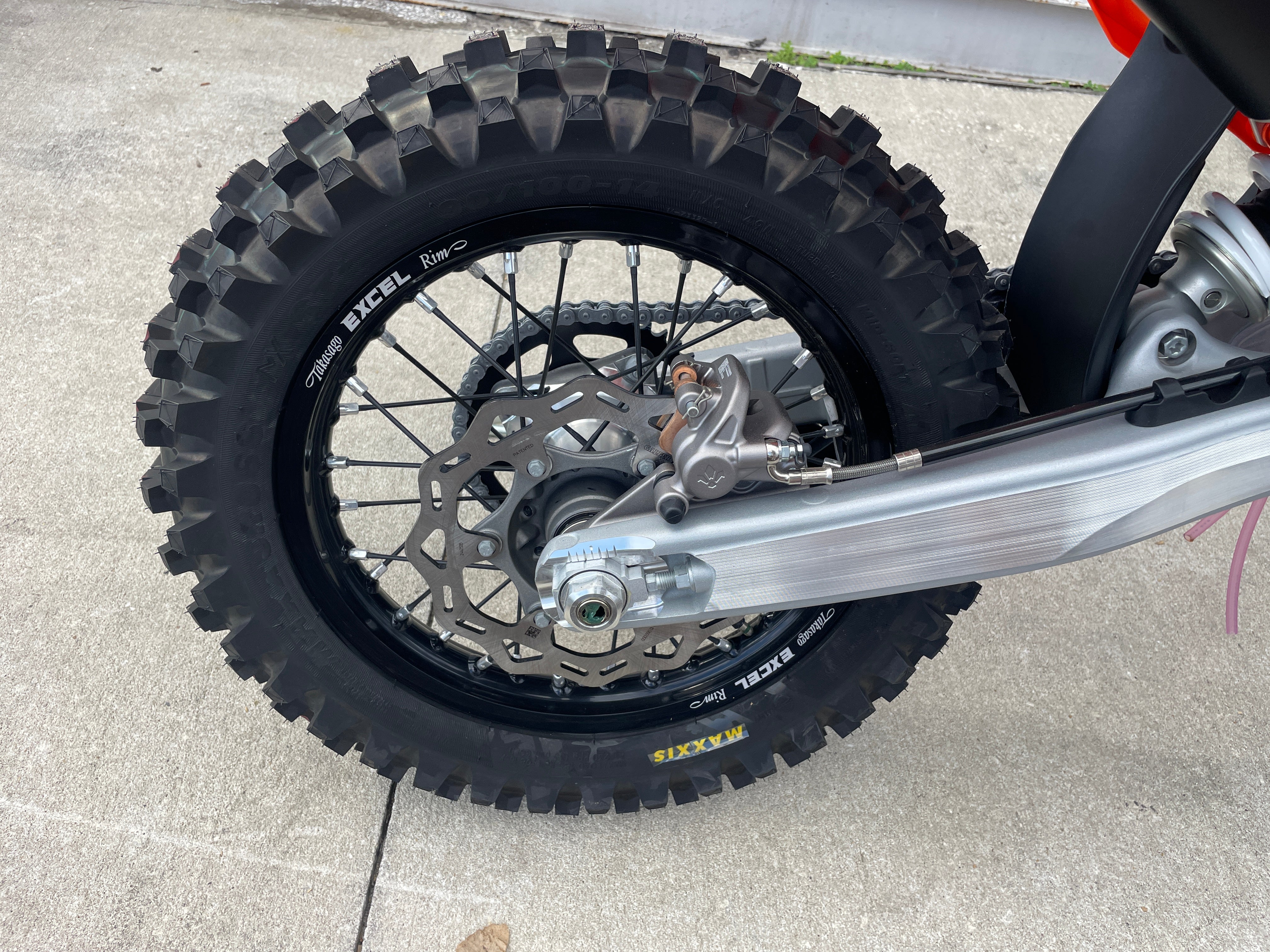

Rear Brake: 220 mm disc
-
Front Wheel: 17 inches with 70/100 tire
-
Rear Wheel: 14 inches with 90/100 tire
Additional Features
-
Handlebars: Tapered aluminum (Ø 28/22 mm)
-
Chain: 428 non-sealed
-
Exhaust: Aluminum silencer
Designed to dominate the track, the 2025 KTM 85 SX 17/14 delivers premium handling, top-tier suspension, and a power-packed two-stroke engine to keep young racers ahead of the competition.
