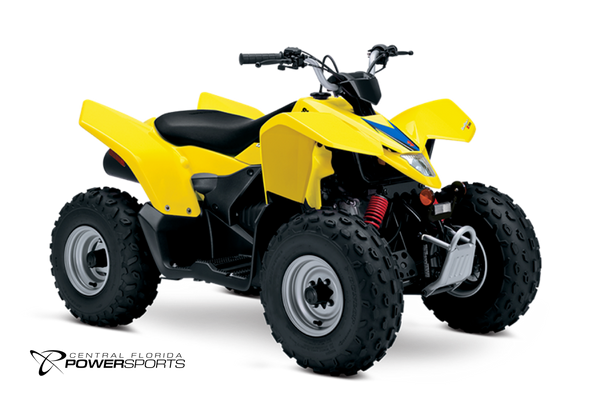

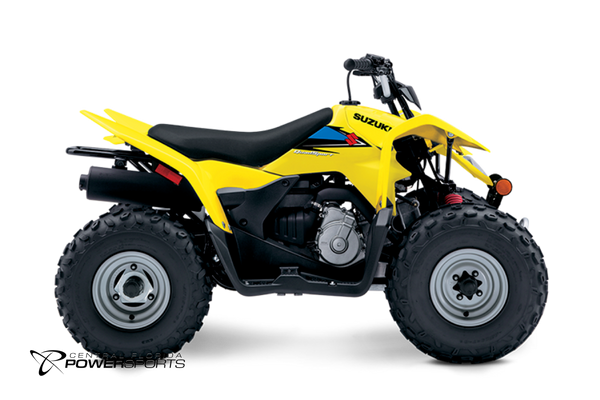

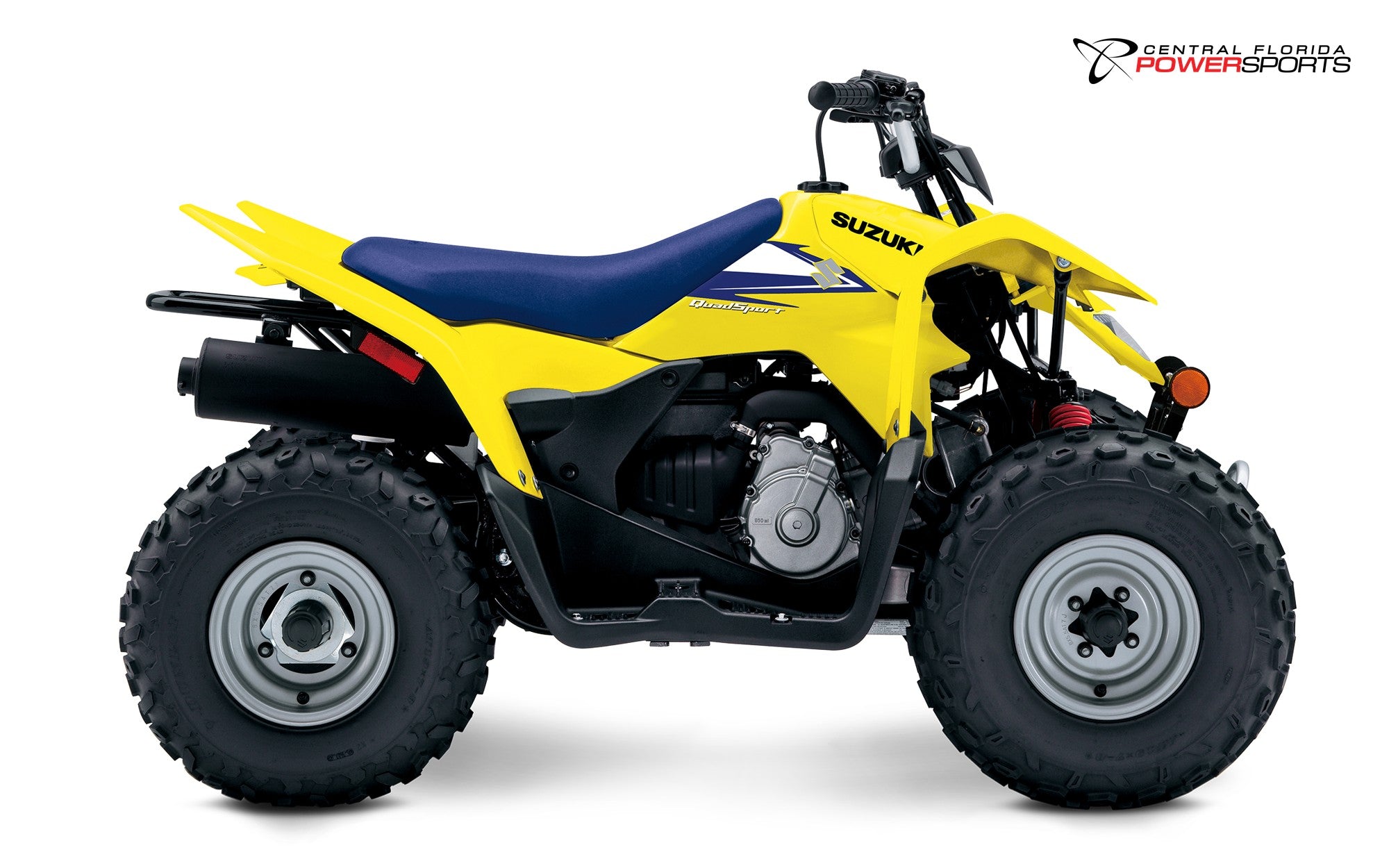

2025 Suzuki QuadSport Z90

The 2025 Suzuki QuadSport Z90 is the ideal ATV for adult-supervised riders ages twelve and older to develop their off-road riding skills. Convenient features like an automatic transmission and electric starter help make this ATV easy to operate. To help young beginners grow into accomplished ATV riders, the Z90 includes a keyed ignition switch and throttle limiter to adjust engine performance to the operator’s skill level.

Get young riders started on the QuadSport Z90, so the whole family can experience the fun of the outdoors and the joy of riding a Suzuki!

• Engine
  90cc, 4-stroke, air-cooled, single cylinder, OHC
• Bore x Stroke
  45.5 mm x 55.2 mm (1.791 in. x 2.173 in.)
• Compression Ratio
  9.5:1
• Fuel System
  Mikuni VM16, single carburetor
• Starter
  Electric and back-up recoil
• Lubrication
  Wet sump
• Transmission
  CVT automatic
• Clutch
  Dry shoe, automatic, centrifugal type
• Driven Wheels
  2WD
• Final Drive
  Chain, RK530, 60 links
• Suspension Front
  Independent, swing axle, coil spring, oil damped
• Suspension Rear
  Swingarm type, coil spring, oil damped
• Brakes Front
  Twin drum brakes
• Brakes Rear
  Single drum brake
• Tires Front
  AT19 × 7-8, tubeless type x 2
• Tires Rear
  AT19 × 7-8, tubeless type x 2
• Fuel Tank Capacity
  1.6 US gal. (6.0 L)
• Ignition
  Electronic ignition (CDI)
• Headlight
  N/A
• Tail Light
  N/A
• Overall Length
  1505 mm (59.3 in.)
• Overall Width
  875 mm (34.4 in.)
• Overall Height
  915 mm (36.0 in.)
• Wheelbase
  1005 mm (39.6 in.)
• Ground Clearance
  150 mm (5.9 in.)
• Seat Height
  650 mm (25.6 in.)
• Curb Weight
  127 kg (280 lb.)
