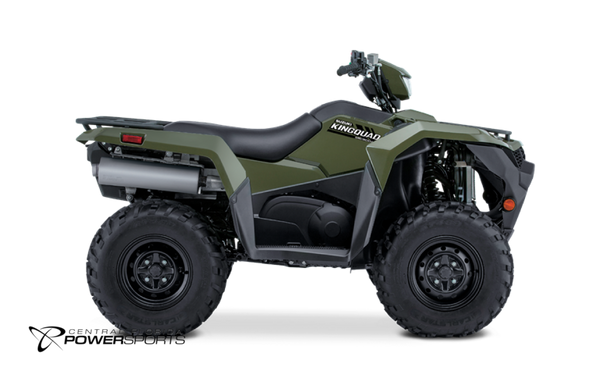

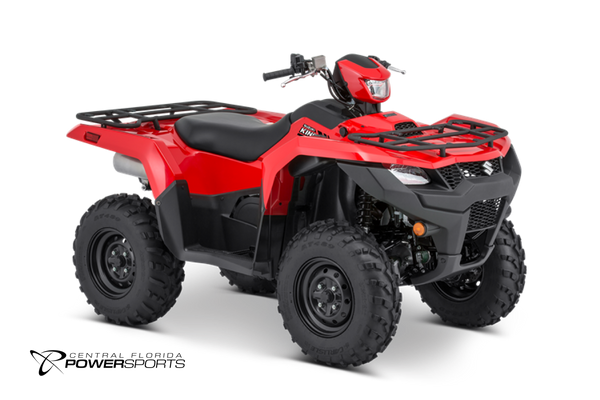

2024 Suzuki KingQuad 500AXi

Suzuki, the inventor of the 4-wheel ATV, has created the world’s best sports-utility quad with bold styling plus more capability and reliability than ever before. The legacy of the iconic KingQuad remains fresh and exciting and is ready for you to join its history. The 2024 KingQuad 500AXi Power Steering helps tackle challenging terrain with the capabilities that only a KingQuad possesses.

• Engine
  493cc (30.1 cubic in.), 4-stroke, liquid-cooled, 4-valve, OHC single cylinder
• Bore x Stroke
  87.5 mm x 82.0 mm (3.40 in. x 3.20 in.)
• Compression Ratio
  9.9:1
• Fuel System
  Suzuki electronic fuel injection
• Starter
  Electric
• Lubrication
  Wet sump
• Transmission
  Automatic variable ratio (V-belt), with high/low-range and reverse
• Clutch
  Dry shoe, automatic, centrifugal type
• Driven Wheels
  2WD, 4WD and 4WD Differential Lock
• Final Drive
  Shaft drive
• Suspension Front
  Independent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
• Suspension Rear
  Independent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
• Brakes Front
  Disc brakes, twin rotors
• Brakes Rear
  Sealed oil-bathed multi-disc
• Tires Front
  AT25 x 8-12**, tubeless type x 2
• Tires Rear
  AT25 x 10-12**, tubeless type x 2
• Fuel Tank Capacity
  17.5 L (4.6 US gal.)
• Ignition
  Electronic ignition (transistorized)
• Headlight
  12V 35/35W x 2 fender-mounted, 12V 35W x 1 handlebar-mounted
• Tail Light
  LED
• Overall Length
  2150 mm (84.6 in.)
• Overall Width
  1215 mm (47.8 in.)
• Overall Height
  1285 mm (50.6 in.)
• Wheelbase
  1285 mm (50.6 in.)
• Ground Clearance
  260 mm (10.2 in.)
• Seat Height
  920 mm (36.2 in.)
• Curb Weight
  315 kg (695 lb.), 316 kg (697 lb.) CA model
